12 Inch 300mm 24 Second Shot Clock , Sports Countdown Timer Digital 88 X 2
Product Details:
| Place of Origin: | Jiaxing ,Zhejiang ,China (Mainland) |
| Brand Name: | Linger |
| Certification: | CE / ROHS |
| Model Number: | LG-LCT2D300R-SC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 1unit in 1 Carton / 10 units in 1 Wooden Case |
| Delivery Time: | 7 - 10 Days |
| Payment Terms: | T/T, Western Union,Paypal |
| Supply Ability: | 100Units/ Per Month |
|
Detail Information |
|||
| Tube Chip Color: | Red | Digit Height: | 12'' 300mm |
|---|---|---|---|
| Format: | 88 X 2 | Sign Size Mm: | 370*550*100 |
| Controller: | IR Remote / PVC Buttons Box / Windows Software | Display Function: | Time |
| Cabinet: | Aluminium Frame / Iron Cabinet | Usage: | Outdoor |
| High Light: | big digit countdown timer,large display digital countdown timer |
||
Product Description

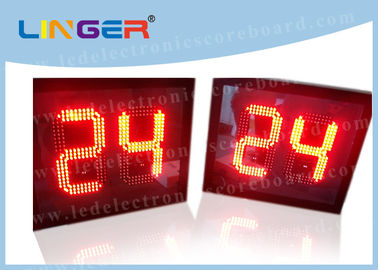

12'' inch 300mm Digit 2 Countdown Seconds Shot Clocks LED Countdown Timer for Sports
|
PRODUCT PARAMETER |
|||
| Format : | 88 | Color : | Red |
| Display Size : | 370mm x 550mm | Thickness : | 100mm |
| Digit Size : | 12'' 300mm | Housing : | Iron Cabinet |
| Communication1 : | IR Remote | Communication Distance : | IR = 10M |
| Communication2 : | Wire | Communication Distance : | RS232 = 50M |
| Communication3 : | Wireless | Communication Distance : | RF433 =1000M |
| Output Voltage : | 5V | Volatge Input : | 110V ~ 240V AC |
| Brightness : | 5000cd / M2 | Working Temp : | -30℃ ~ +65℃ |
| Viewing Angle : | > 100° | Working Humidity : | 5% - 90% RH |
| Life Span : | 100,000 Hours | Waterproof : | IP65 |
Specification :
1) Use of the environment: Outdoor and Indoor
2) Brightness: High Level Brightness
3) Height of Number Option : 6'' / 8'' / 10'' / 12'' / 16'' / 20'' / 24'' / 30'' ect.
4) Number Color Option : Red / Green / Amber / Blue / White
5) Frame Color : Black Color (Any other kind is Option)
Overall Structure :
1) Display Sign Include : Numbers ,Controller , Cabinet / Frame ,Power Supply
2) Frame : Iron / Steel
3) Faceplate : Display window cover glass board and UV Protection
4) Drainage Outlet at the bottom of the Frame
5) Fans install inside of scoreboard
Technical Norms :
1) Power Supply : 110V ~ 240V
2) Operation Circumstance: -30℃ ~ 65℃ ,5% ~ 90% relative humidity
Operation Type :
1) Controller Type : IR Remote / PVC Buttons Controller Box / Windows Software
2) Communication Type : IR / Hard - wire / Wireless Type
3) Operation Distance : 10m ~ 1200m.
4) Operation Power : Remote with Battery / Controller Box with 110v ~ 240v Power
Life Time of Leds : 100000 Hours
Installation : Hanging / Mounting / Tripod / With wheels / Custoized Design
Delivery Time : 7days ~ 12days
Warranty : 2 Years
Package Dimension : 440mm x 620mm x 170mm
Dimension:
| Model | Timer Size | Package Dimension |
| 8'' 200mm | 300mm x 350mm x 100mm | 370mm x 420mm x 170mm |
| 10'' 254mm | 350mm x 410mm x 100mm | 420mm x 480mm x 170mm |
| 12'' 300mm | 370mm x 550mm x 100mm | 440mm x 620mm x 170mm |
| 16'' 400mm | 610mm x 690mm x 100mm | 680mm x 760mm x 170mm |
| 20'' 500mm | 690mm x 760mm x 100mm | 760mm x 830mm x 170mm |
| 24'' 600mm | 770mm x 900mm x 100mm | 840mm x 970mm x 170mm |
| 30'' 750mm | 920mm x 910mm x 100mm | 990mm x 980mm x 170mm |
Timer Function:
1.Display : Seconds
2.Count up : Count from zero to 99 seconds
3.Countdown : Count from 99 seconds to zero
4.Interval timer: interval repeating countdown/ count up timer, max 99 Seconds
Available Option:
* Timer can work by Battery .
Are you a manufacture?
A : Yes, we are a manufacture with rich experience.
Can I visit your factory ?
A : Welcome ! The nearest air port is Shanghai Pudong International Airport.
How does your factory do Quality Control?
A : Quality is 1st priority. We always attach great importance to quality controlling from
raw material suppliers. We have professional QC team to inspect the products.
Can you add my own LOGO on the product?
A : Yes, customized logo are welcome. OEM and ODM is OK for us.
Can we use our own shipping agent?
A : Yes, you can. We had cooperated with many forwarders. If you need ,we can
recommend some forwarders to you and you can compare the price and services.
Number Height : 6'' / 8'' / 10'' / 12'' / 16'' / 20'' / 24'' / 30''
Digit Color : Red / Green / Yellow / White / Blue
Number Working Voltage : 5V / 7V / 12V / 16V / 18V
Power Source : Power Supply / Power Adapter / Battery
Power Plug Type : USA / EU / AUS / UK / CN
Controller : IR Remote / Wire Controller box / Wireless Controller Box / Windows Software
Cabinet / Frame : Aluminium Frame / Iron Cabinet
Installation for Frame / Cabinet : Hanging / Mounting / Tripod ( Suitcase )
Package Material : Protection Material and Carton or Wooden Case
Packaging Details :
-
Air and Express Shipment Packaging : Carton -
Sea Shipment Packaging : Wood Case (Free) -
OEM Packaging : Customized . Warmly welcome to contact us to talk more detail.
Delivery Details :
-
Order Quantity 1Unit ~ 20Units : 7days ~ 10days. -
Order Quantity 21Unit ~ 50Units : 10days ~ 15days. -
Order Quantity > 50Units : 15days ~ 20days. -
Sea Shipment need 25days to arrive. -
Air and Express Shipment need 3-5days to arrive.
