7 Segments LED Countdown Timer For Train Station Easy Installation 12'' 300mm
Product Details:
| Place of Origin: | Jiaxing ,Zhejiang ,China (Mainland) |
| Brand Name: | Linger |
| Certification: | CE / ROHS |
| Model Number: | LG-LCT5D300R-1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 1unit in 1 Carton / 10 units in 1 Wooden Case |
| Delivery Time: | 7 - 10 Days |
| Payment Terms: | T/T, Western Union,Paypal |
| Supply Ability: | 100Units/ Per Month |
|
Detail Information |
|||
| Tube Chip Color: | Red | Digit Height: | 12'' 300mm |
|---|---|---|---|
| Format: | 8 : 88 : 88 | Sign Size Mm: | 370*1300*100 |
| Controller: | IR Remote / PVC Buttons Box / Windows Software | Display Function: | Time |
| Cabinet: | Aluminium Frame / Iron Cabinet | Usage: | Outdoor |
| High Light: | electronic countdown timer,big digit countdown timer |
||
Product Description

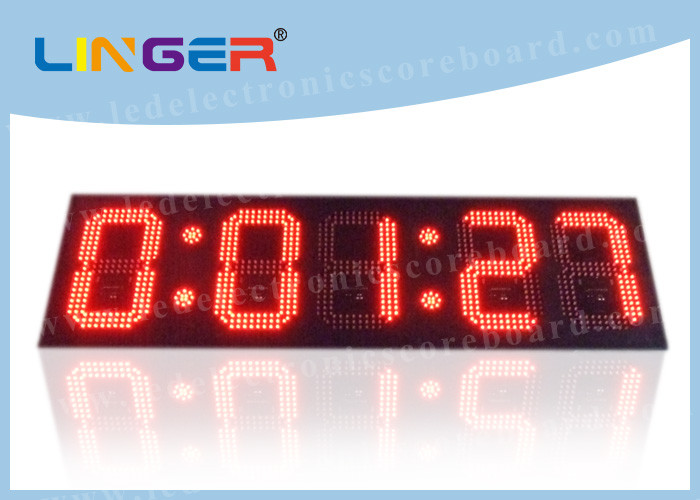

Easy Installation 7 Segments Digital LED Countdown Timer for Train Station
|
PRODUCT PARAMETER |
|||
| Format : | 8 : 88 : 88 | Color : | Red |
| Display Size : | 370mm x 1300mm | Thickness : | 100mm |
| Digit Size : | 12'' 300MM | Housing : | Iron Cabinet |
| Communication1 : | IR Remote | Communication Distance : | IR = 10M |
| Communication2 : | Wire | Communication Distance : | RS232 = 50M |
| Communication3 : | Wireless | Communication Distance : | RF433 =1000M |
| Output Voltage : | 5V | Volatge Input : | 110V ~ 240V AC |
| Brightness : | 5000cd / M2 | Working Temp : | -30℃ ~ +65℃ |
| Viewing Angle : | > 100° | Working Humidity : | 5% - 90% RH |
| Life Span : | 100,000 Hours | Waterproof : | IP65 |
Specification :
1) Use of the environment: Outdoor and Indoor
2) Brightness: High Level Brightness
3) Height of Number Option : 6'' / 8'' / 10'' / 12'' / 16'' / 20'' / 24'' / 30'' ect.
4) Number Color Option : Red / Green / Amber / Blue / White
5) Frame Color : Black Color (Any other kind is Option)
Overall Structure :
1) Display Sign Include : Numbers ,Controller , Cabinet / Frame ,Power Supply
2) Frame : Iron / Steel
3) Faceplate : Display window cover glass board and UV Protection
4) Drainage Outlet at the bottom of the Frame
5) Fans install inside of scoreboard
Technical Norms :
1) Power Supply : 110V ~ 240V
2) Operation Circumstance: -30℃ ~ 65℃ ,5% ~ 90% relative humidity
Operation Type :
1) Controller Type : IR Remote / PVC Buttons Controller Box / Windows Software
2) Communication Type : IR / Hard - wire / Wireless Type
3) Operation Distance : 10m ~ 1200m.
4) Operation Power : Remote with Battery / Controller Box with 110v ~ 240v Power
Life Time of Leds : 100000 Hours
Installation : Hanging / Mounting / Tripod / With wheels / Custoized Design
Delivery Time : 7days ~ 12days
Warranty : 2 Years
Package Dimension : 440mm x 1370mm x 170mm
Dimension:
| Model | Timer Size | Package Dimension |
| 8'' 200mm | 300mm x 850mm x 100mm | 370mm x 920mm x 170mm |
| 10'' 254mm | 350mm x 1050mm x 100mm | 420mm x 1120mm x 170mm |
| 12'' 300mm | 370mm x 1300mm x 100mm | 440mm x 1370mm x 170mm |
| 16'' 400mm | 610mm x 1670mm x 100mm | 680mm x 1740mm x 170mm |
| 20'' 500mm | 700mm x 1900mm x 100mm | 770mm x 1970mm x 170mm |
| 24'' 600mm | 770mm x 2000mm x 100mm | 840mm x 2070mm x 170mm |
| 30'' 750mm | 920mm x 2670mm x 100mm | 990mm x 2740mm x 170mm |
Timer Function:
1.Display : Hours : Minutes : Seconds (Support 12/24 Hour)
2.Count up : Count from zero to 9 hours 59 minutes 59 seconds
3.Countdown : Count from 9 hours 59 minutes 59 seconds to zero
4.Stopwatch : minutes, seconds and 1/100 of seconds format,zero up to 9:59:99
5.Interval timer: interval repeating countdown/ count up timer, max 99 rounds
Available Option:
* Install GPS inside as Clock ,then it can search time and Display AUTO.
* Timer can work by Battery .
* Colon between the digits can be dark and the timer can be used to display Sports / Game Scores.
* Extra Function to display Temperature.
Number Height : 6'' / 8'' / 10'' / 12'' / 16'' / 20'' / 24'' / 30''
Digit Color : Red / Green / Yellow / White / Blue
Number Working Voltage : 5V / 7V / 12V / 16V / 18V
Power Source : Power Supply / Power Adapter / Battery
Power Plug Type : USA / EU / AUS / UK / CN
Controller : IR Remote / Wire Controller box / Wireless Controller Box / Windows Software
Cabinet / Frame : Aluminium Frame / Iron Cabinet
Installation for Frame / Cabinet : Hanging / Mounting / Tripod ( Suitcase )
Package Material : Protection Material and Carton or Wooden Case
