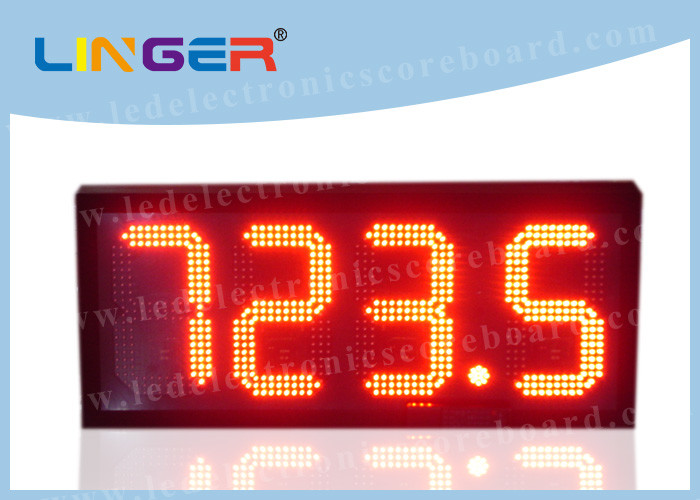

12'' 300mm Red Color Led Price Display , Gas Price Led Sign With Several Rows
Product Details:
| Place of Origin: | Jiaxing ,Zhejiang ,China (Mainland) |
| Brand Name: | Linger |
| Certification: | CE / ROHS |
| Model Number: | LG-DGPS-300R |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 1unit in 1 Carton / 10 units in 1 Wooden Case |
| Delivery Time: | 7 - 10 Days |
| Payment Terms: | T/T, Western Union,Paypal |
| Supply Ability: | 100Units/ Per Month |
|
Detail Information |
|||
| Tube Chip Color: | Red | Digit Height: | 12'' 300mm |
|---|---|---|---|
| Format: | 888.8 | Sign Size （mm）: | 500*1000*100 |
| Controller: | IR Remote / PVC Buttons Box / Windows Software | Display Function: | Number And Letter |
| Cabinet: | Aluminium Frame / Iron Cabinet | Usage: | Outdoor |
| High Light: | gas price led sign,led price display |
||
Product Description
12'' 300mm Red Color Large Digital Gas Price Signs with Several Rows
|
PRODUCT PARAMETER |
|||
| Format : | 888.8 | Color : | Red |
| Display Size : | 500mm x 1000mm | Thickness : | 100mm |
| Digit Size : | 12'' 300mm | Housing : | Iron Cabinet |
| Communication1 : | IR Remote | Communication Distance : | IR = 10M |
| Communication2 : | Wire | Communication Distance : | RS232 = 50M |
| Communication3 : | Wireless | Communication Distance : | RF433 =1000M |
| Output Voltage : | 5V | Volatge Input : | 110V ~ 240V AC |
| Brightness : | 5000cd / M2 | Working Temp : | -30℃ ~ +65℃ |
| Viewing Angle : | > 100° | Working Humidity : | 5% - 90% RH |
| Life Span : | 100,000 Hours | Waterproof : | IP65 |
Specification :
1) Use of the environment: Outdoor Gas Station / Service Station
2) Brightness: High Level Brightness
3) Height of Number Option : 6'' / 8'' / 10'' / 12'' / 16'' / 20'' / 24'' / 30'' ect.
4) Number Color Option : Red / Green / Amber / Blue / White
5) Frame Color : Black Color (Any other kind is Option)
Overall Structure :
1) Display Sign Include : Numbers ,Controller , Cabinet / Frame ,Power Supply
2) Frame : Iron / Steel
3) Faceplate : Display window cover glass board and UV Protection
4) Drainage Outlet at the bottom of the Frame
5) Fans install inside of scoreboard
Technical Norms :
1) Power Supply : 110V ~ 240V
2) Operation Circumstance: -30℃ ~ 65℃ ,5% ~ 90% relative humidity
Operation Type :
1) Controller Type : IR Remote / PVC Buttons Controller Box / Windows Software
2) Communication Type : IR / Hard - wire / Wireless Type
3) Operation Distance : 10m ~ 1200m.
4) Operation Power : Remote with Battery / Controller Box with 110v ~ 240v Power
Life Time of Leds : 100000 Hours
Installation : Hanging / Mounting / Custoized Design
Delivery Time : 7days ~ 12days
Warranty : 2 Years
Package Dimension : 560mm x 1070mm x 160mm ( Carton )
| Model | Gas Price Sign Size | Package Dimension |
| 8'' 200mm | 300mm x 630mm x 100mm | 360mm x 700mm x 160mm |
| 10'' 254mm | 450mm x 950mm x 100mm | 520mm x 1020mm x 160mm |
| 12'' 300mm | 500mm x 1000mm x 100mm | 560mm x 1070mm x 160mm |
| 16'' 400mm | 750mm x 1550mm x 100mm | 820mm x 1620mm x 170mm |
| 20'' 500mm | 800mm x 1600mm x 100mm | 860mm x 1670mm x 170mm |
| 24'' 600mm | 900mm x 2000mm x 100mm | 970mm x 2070mm x 170mm |
| 30'' 750mm | 1150mm x 2400mm x 100mm | 1220mm x 2470mm x 170mm |
1. To finish the scoreboard Layout drawing, or can send us the photo of the scoreboard you need to
produce.
2. On the website we display a lot of Sport Scoreboards for different games.To Select the similar
scoreboard picture and send us your idea or changes for this one.
3. After we talking about the all design details and changes ,new confirmed scoreboard layout will be send
to confirm.
4. For the scoreboard size and Color ,the digit height and color ,all are negotiated.
5. To plus or reduce the digit on the scoreboard,make different color in one scoreboard,make different
color for cabinet , print Logo on the scoreboard ,all requests are available in the layout drawing.
For Indoor Scoreboard :
1) Bracket / Bracket with wheels
2) Hanging with Hooks and it is dangly
3) Hanging on the Wall and it is fixed on wall
4) Hanging on the pillar with anchor ear
For Outdoor Scoreboard:
1) Portal Frame
2) Hanging on the Wall and it must be fixed
3) Hanging on the pillar with anchor ear
4) Bracket / Bracket with wheels ( Only for small size )
5) Hanging into Wall and Fixed
Attention Matters:
Dissipate Heat and Drainage - Inform us the installation method in advance ,we will make
right method on scoreboard.
Maintenance - Easy to do maintance from front or back side .
Stable and stronger Method - Weatherproof
1.We are a reliable and professional supplier for led board in China for 11 years. We are specialized in
dealing a wide range of led product such as led scoreboard,led gas price sign,led message sign ,led
clock,led display and other led display. Since now we have so many fixed customers from all of the
world.
2.We accept the Customized Product or MOQ is one unit. At least 95% of led scoreboard is customized
type by our design on our website. We are specialized for scoreboard controller function design
especially Australia sport of scoreboard like Australia Football board and Cricket board.
3. We supply you the most led products with the competitive price, high quality, fast delivery and best
service. We are direct seller of led board and display, you can get the most competitive price from us.
Warmly welcome to contact us, and of course, you can visit our factory if you want.
