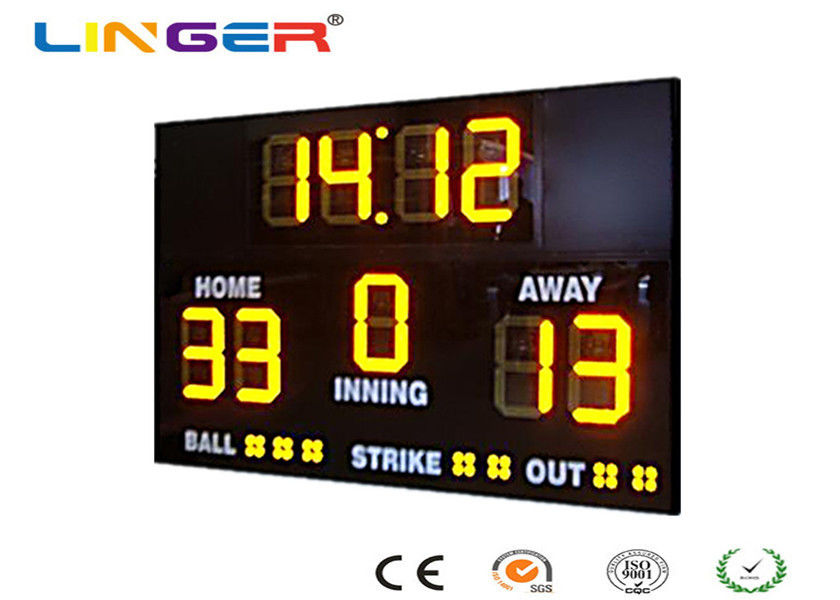

Athletic Digital Baseball Scoreboard , Baseball Electronic Scoreboard Outdoor Type
|Place of Origin:||Jiaxing, Zhejiang, China (Mainland)|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 Unit|
|Packaging Details:||1unit in one Carton / Wooden Case|
|Delivery Time:||7 - 10 Days|
|Payment Terms:||T/T, Western Union,Paypal|
|Supply Ability:||100Units/ Per Month|
|Digit Color:||Amber Color||Controller:||PVC Controller Box - Wireless Type|
|Frame Material:||Iron In Black Color||Digit Height:||16'' 400mm Height|
|Scoreboard Size:||1300mm*1800mm*100mm||UV Protection:||Front Face|
|Input Power:||110V ~ 220V||Usage:||Outdoor Type|
electronic baseball scoreboard,
digital baseball scoreboard,
Athletic Digital Baseball Scoreboard
Athletic Electronic Sport Board for LED Baseball Scoreboard and Outdoor type
|Model No. :||LG-LBBS-9D400Y|
|Dight Height and Color :||16'' 400mm Height in Single Yellow Color|
|Display Dimension :||4.3ft x 5.9ft ( 1300mm*1800mm*100mm )|
|Operation Type :||PVC Buttons Type Controller Box / Windows Software (Wireless)|
|View Distance :||1m ~ 500m|
|Application :||Baseball Game|
|Frame Color :||Red / others|
|Printed Letters||Sticker in White Color|
|Brightness :||> 5000mcd / sqm|
|Waterproof :||Outdoor Type|
Function : Display Score
1) Use of the environment: Outdoor
2) Brightness: High Level Brightness
3) Height of Characte: 16'' 400mm for main scoreboard
4) Display Color : Amber Color (Any other kind is Option)
5) Frame Color : Black Color (Any other kind is Option)
Overall Structure :
1) Display usage: Totally 9 pieces digits ,16 inch height characte
2) Frame : Iron / Steel
3) Faceplate : Display window cover glass board and UV Protection
4) Drainage Outlet at the bottom of the Frame
5) Fans install inside of scoreboard
Technical Norms :
1) Power Supply : 110V ~ 240V
2) Operation Circumstance: -30℃ ~ 65℃ ; 0% ~ 95% relative humidity
Operation Type :
1) PVC Buttons Controller Box / Windows Software
2) Hard - wire / Wireless Type
3) Operation Distance : Max 1000Meters.
4) Controller box works by 110V ~ 240V Power (Battery is an Option)
Life Time of Leds : 100000 Hours
Installation : Hanging / Mounting / Custoized Design
Delivery Time : 7days ~ 12days
FOB Port : Shanghai
Warranty : 2 Years
Package Dimension : 1370mm x 1870mm x 150mm (Carton)
Screen Dimension : 4.3' x 5.9' x 4''
TIME : 4Digits to display HH : MM / MM : SS
AWAY : 2Digits to display Score from 00 - 99
HOME : 2Digits to display Score from 00 - 99
INNINGS : 1Digit to display Score from 0 -9
BALL : 3Dots With function for ON / OFF
STICKER : 2Dots With function for ON / OFF
OUT : 2Dots With function for ON / OFF
Function Option : Brightness Adjust / Clear Score
Any Special Function is Welcome !
1. To finish the scoreboard Layout drawing, or can send us the photo of the scoreboard you need to
2. On the website we display a lot of Sport Scoreboards for different games.To Select the similar
scoreboard picture and send us your idea or changes for this one.
3. After we talking about the all design details and changes ,new confirmed scoreboard layout will be send
4. For the scoreboard size and Color ,the digit height and color ,all are negotiated.
5. To plus or reduce the digit on the scoreboard,make different color in one scoreboard,make different
color for cabinet , print Logo on the scoreboard ,all requests are available in the layout drawing.
1. Existing samples can be provided but not for free of charge. 2. Customized size and layout design are welcome.
3. Sample will be finished about one week.
4. Photos for sample will be sent to confirm befor the shippment.
5. Good after-sale service - any quality problem , we will do our best to help solve the problem.
6. Large size sample will shipped by air or sea . Sample with small size and light will send by express.
1. We manufactured Led Product over 10 Years.Rich experience with excellent staff, first-class production
environment ,rigorous and efficient enterprise management system.
2. Customized Design Product is welcome.And MOQ can be 1 Unit.We will provide the competition price
for Various Led Products.
3. The company has a variety of test equipment to control product quality like “Light Source Analysis
System”, “High – Low Temp & Variation Chamber”, “Transportation Vibration Testing Machine”, “Splash
Water Test Equipment” .
4. Flexible Payment – Wire Transfer (T/T), Wester Union, Paypal .
5. Products all certificated, all our products have passed all test, certification can be provided if you need.
