• 8'' 200mm Height Cricket Digital Score Display Board With PVC Controller Box
8'' 200mm Height Cricket Digital Score Display Board With PVC Controller Box

8'' 200mm Height Cricket Digital Score Display Board With PVC Controller Box

Product Details:

Place of Origin: Jiaxing, Zhejiang, China (Mainland)
Brand Name: Linger
Certification: CE ,RoHS
Model Number: LG-LCS-17D200R

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Negotiation
Packaging Details: 1unit in one Carton / Wooden Case
Delivery Time: 7 - 10 Days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 100Units/ Per Month
Get Best Price Contact Now

Detail Information

Digit Color: Red Color Controller: PVC Controller Box - Wireless Type
Frame Material: Iron In Black Color Digit Height: 8'' 200mm Height
Scoreboard Size: 1000mm*1600mm*90mm UV Protection: Front Face
Input Power: 110V ~ 240V Usage: Outdoor Type
High Light:

electronic cricket scoreboards

,

digital cricket scoreboard

,

8'' 200mm Cricket Display Board

Product Description

High Quality and Wireless Buttons Controller LED Cricket Scoreboard for stadium





PRODUCT INFORMATION
Model No. :  LG-LCS-17D200R
Dight Height and Color : 8'' 200mm Height in Single Red Color
Display Dimension  : 3.3ft x 5.2ft ( 1000mm*1600mm*90mm )
Operation Type :  PVC Buttons Type Controller Box / Windows Software (Wireless)
View Distance :  1m ~ 160m
Application :  Cricket Game
Frame Color :  Black / others
Printed Letters Sticker in White Color
Brightness :  > 5000mcd / sqm
Waterproof :  Outdoor Type
Frame Material : Iron / Steel
Viewing Angle : >110°





Scoreboard Description for Cricket Kind



Function : Display Score



Parameters​ :

                     1) Use of the environment: Outdoor

                     2) Brightness: High Level Brightness

​                     3) Height of Characte:  8 Inch

                     4) Display Color :  Red Color (Any other kind is Option)

                     5) Frame Color : Black Color (Any other kind is Option)



​Overall Structure :

​                     1) Display usage: Total 17 pieces digits ,8 inch height character

                     2) Frame : Iron / Steel

                     3) Faceplate​ : Display window cover glass​ board and UV Protection

                     4) Drainage Outlet at the bottom of the Frame

                     5) Fans install inside of scoreboard



Technical Norms​ :



                     1) Power Supply : 110V ~ 240V

                     2) Operation Circumstance:  -30℃ ~ 65℃ ; 0% ~ 95% relative humidity



Operation Type :



                      1) PVC Buttons Controller Box / Windows Software

                      2) Hard - wire / Wireless Type

                      3) Operation Distance : Max 1000Meters.

                      4) Controller box works by 110V ~ 240V Power (Battery is an Option)



Life Time of Leds : 100000 Hours



Installation : Hanging / Mounting / Custoized Design



Delivery Time :  7days ~ 12days



Warranty : 2 Years



Package Dimension : 1070mm x 1670mm x 150mm  (Carton)



Screen Dimension :  3.3'  x  5.2'  x  4''

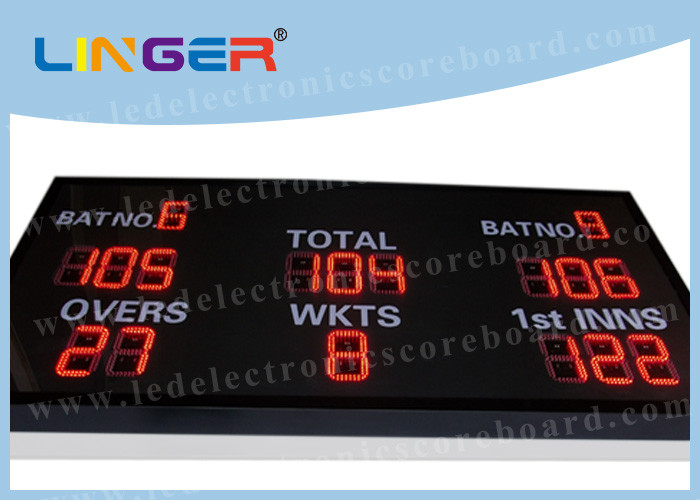

 Function




BAT No. 1  : 1digit to display number from 0 - 9



BAT No. 2  : 1digit to display number from 0 - 9



RUNS 1 :  3digits to display number from 000 - 999



RUNS 2 :  3digits to display number from 000 - 999



TOTAL  :  3digits to display number from 000 - 999



OVERS :  2digits to display number from 00 - 99



WKTS :  1digit to display number from 0 - 9



1st INNS :  3digits to display number from 000 - 999



Sticker in white Color on the Scoreboard can be any Letters.



Function Option : Brightness Adjust / Clear Score



Any Special Function is Welcome !





About Sample



1. Existing samples can be provided but not for free of charge.



2. Customized size and layout design are welcome.



3. Sample will be finished about one week.



4. Photos for sample will be sent to confirm befor the shippment.



5. Good after-sale service - any quality problem , we will do our best to help solve the problem.



6. Large size sample will shipped by air or sea . Sample with small size and light will send by express.







Scoreboard Dimension Option




    Model #                     Digit Size                                Scoreboard Size



CS - 19D - 200                 8''  200mm              3.3' * 5.2' * 4'' / 1000mm  * 1600mm * 100mm

CS - 19D - 300                12'' 300mm              4' * 6.9' * 4'' / 1200mm * 2100mm * 100mm

CS - 19D - 400                16'' 400mm              6' * 10' * 4'' / 1800mm * 3000mm * 100mm

CS - 19D - 500                20'' 500mm              5.2' * 13' * 4'' / 2100mm * 4000mm * 100mm





FAQ



Q1. What is your payment ?



A : We accept T/T , Wester Union , Paypal.



Q2. When can you arrange the shipment after i have placed an order ?



A : Usually about 10days after receiving Payment.



Q3. Can you accept customized ?



YES.Welcome!



Q4. Is it OK to print my logo on the product?



A : Yes. Please inform us formally before our production and confirm.
