|Place of Origin:||Jiaxing ,Zhejiang ,China (Mainland)|
|Certification:||CE / ROHS|
|Minimum Order Quantity:||1 Unit|
|Packaging Details:||1unit in 1 Carton / Wooden Case|
|Delivery Time:||7 - 10 Days|
|Payment Terms:||T/T, Western Union,Paypal|
|Supply Ability:||100Units/ Per Month|

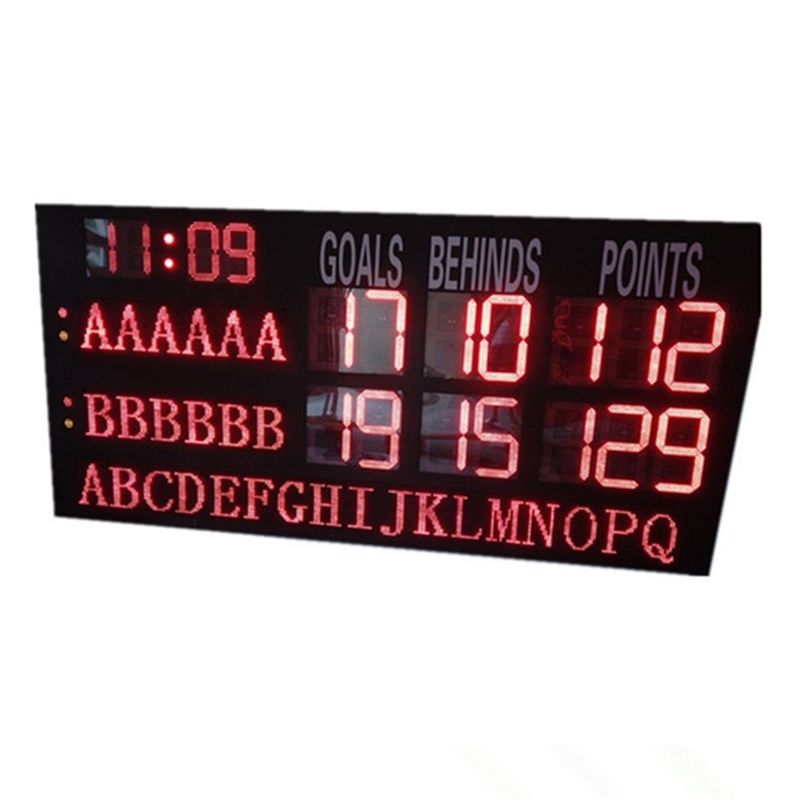

Australia Aussie and Cricket Modes Electronic Scoreboard with High Birghtness Led Digits
|Model No. :||LG-AFL-300400R-VTNSM|
|Dight Height and Color :||12'' 300mm and 16'' 400mm Height in Red Color|
|Display Dimension :||4.6 ft x 10.5 ft x 4inch ( 1400mm x 3200mm x 100mm )|
|Operation Type :||PVC Buttons Type Controller Box / Windows Software (Wireless)|
|View Distance :||1m ~ 500m|
|Application :||AFL (Football Sport and Cricket Sport )|
|Frame Color :||Black / other Colors|
|Printed Letters||Sticker in White Color for Any letters|
|Waterproof :||Outdoor Type|
Function : Display TIME / GOALS / BEHINDS / POINTS / TEAM NAME
1) Use of the environment: Indoor or Outdoor
2) Brightness: High Level Brightness
3) Height of Characte: 12'' 300mm and 16'' 400mm
4) Display Led Color : Red (Any other kind is Option)
5) Frame Color : Black Color (Any other kind is Option)
6) Team Name : Pitch10mm - 320mm x 768mm / Per Team Name
7) Message Sign : Pitch10mm - 320mm x 2880mm x 1 Line
Overall Structure :
1) Display usage:
18 Pieces digits , 12 inch character in Red Color
12 Pieces Led Modules ,Pitch10mm in Red for Team Name
18 Pieces Led Modules ,Pitch10mm in Red for Message Sign
2) Frame : Iron / Steel
3) Faceplate : Display window cover glass board and UV Protection
4) Drainage Outlet at the bottom of the Frame
5) Fans install inside of scoreboard
Technical Norms :
1) Power Supply : 110V ~ 240V
2) Operation Circumstance: -30℃ ~ 65℃ ,0% ~ 95% relative humidity
Operation Type :
1) PVC Buttons Controller Box / Windows Software
2) Hard - wire / Wireless Type
3) Operation Distance : Max 1000Meters.
4) Controller box works by 110V ~ 240V Power (Battery is an Option)
5) Controller Buttons for A - Z to enter the Team Name Letters
Life Time of Leds : 100000 Hours
Installation : Hanging / Mounting / Custoized Design
Delivery Time : 7days ~ 12days
Warranty : 2 Years
Package Dimension : 1270mm x 3270mm x 160mm (Carton / Wooden Case )
Screen Dimension : 4.6 ' x 10.5 ' x 4''
AFL Scoreboard with 2 Modes : Football (Aussie) Mode and Cricket Mode
TIME : Minutes / Seconds for Football Mode , Hours : Minutes for Cricket Mode - 4 Digits to display
Footbal Mode Mode :
GOAL - 2 Digits Display score number 00 - 99 ( GOAL + 1 = TOTAL + 6 )
BEHINDS - 2 Digits Display score number 00 - 99 ( BEHINDS + 1 = TOTAL + 1)
TOTAL - 3 Digits display score number 000 - 999
Cricket Mode Mode :
BATSMEN RUNS - 3 Digits display number 000 - 999
WICKETS - 2 Digits display number 00 - 99
OVERS - 2 Digits display number 00 - 99
BATEMAN TOTAL - 3 Digits display number 000 - 999
CHASING - 3 Digits display number 000 - 999
Team Name : Display Team / Player Name Letters for A - Z
Message Sign : Display Message and Moving .
Siren : Include . When time is reach to 00 :00 , it will sound for 5 ''
Led Brightness : Option
SCOREBOARD FUNCTION IS CUSTOMIZED ,ANY FUNCTION IS WELCOME !
Are you a manufacture?
A : Yes, we are a manufacture with rich experience.
Can I visit your factory ?
A : Welcome ! The nearest air port is Shanghai Pudong International Airport.
How does your factory do Quality Control?
A : Quality is 1st priority. We always attach great importance to quality controlling from
raw material suppliers. We have professional QC team to inspect the products.
Can you add my own LOGO on the product?
A : Yes, customized logo are welcome. OEM and ODM is OK for us.
Can we use our own shipping agent?
A : Yes, you can. We had cooperated with many forwarders. If you need ,we can
recommend some forwarders to you and you can compare the price and services.
1. We manufactured Led Product over 10 Years.Rich experience with excellent staff, first-class production
environment ,rigorous and efficient enterprise management system.
2. Customized Design Product is welcome.And MOQ can be 1 Unit.We will provide the competition price
for Various Led Products.
3. The company has a variety of test equipment to control product quality like “Light Source Analysis
System”, “High – Low Temp & Variation Chamber”, “Transportation Vibration Testing Machine”, “Splash
Water Test Equipment” .
4. Flexible Payment – Wire Transfer (T/T), Wester Union, Paypal .
5. Products all certificated, all our products have passed all test, certification can be provided if you need.
1. We are a reliable and professional supplier for led board in China for 11 years. We are specialized in
dealing a wide range of led product such as led scoreboard,led gas price sign,led message sign ,led
clock,led display and other led display. Since now we have so many fixed customers from all of the
2. We accept the Customized Product or MOQ is one unit. At least 95% of led scoreboard is customized
type by our design on our website. We are specialized for scoreboard controller function design
especially Australia sport of scoreboard like Australia Football board and Cricket board.
3. We supply you the most led products with the competitive price, high quality, fast delivery and best
service. We are direct seller of led board and display, you can get the most competitive price from us.
Warmly welcome to contact us, and of course, you can visit our factory if you want.
|LED Color:||Red||Digit Size:||12'' 300mm And 16'' 400mm|
|Frame Material:||Iron / Steel / Aluminum||Opreation Type:||PVC Buttons Box - Wireless Type|
|Scoreboard Dimension:||1400mm X 3200mm X 100mm||UV Protection:||Front Glass Board|
|Usage:||Indoor And Outdoor||Input Voltage:||110V ~ 250V|
