DIP Custom Aussie Rules Afl Football Scoreboard 2100MM X 2300MM X 100MM

DIP Custom Aussie Rules Afl Football Scoreboard 2100MM X 2300MM X 100MM

Product Details:

Place of Origin: Zhejiang,China
Brand Name: Linger
Certification: CE/ROHS/FCC/ETL/TUV
Model Number: AFL-19D300R-VMSR

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Negotiation
Packaging Details: Film+1-3 cm Foam + Paper cardboard each/ Wooden case exporting
Delivery Time: 15 ~ 18 Working Days after received Payment
Payment Terms: T/T, Western Union,Paypal, Credit Card
Supply Ability: 10000pcs Per Month
Get Best Price Contact Now

Detail Information

Digits QTY: 16 Digit Size: 12'' 300MM
Led Color: Red Color Model: Standard
Brightness: Outdoor/Indoor Model Digit Model: DIP
Warranty: 2 Years Function: Aussie Rules
High Light:

afl football scoreboard

,

afl live scoreboard

,

No Dazzling Afl Football Scoreboard

Product Description

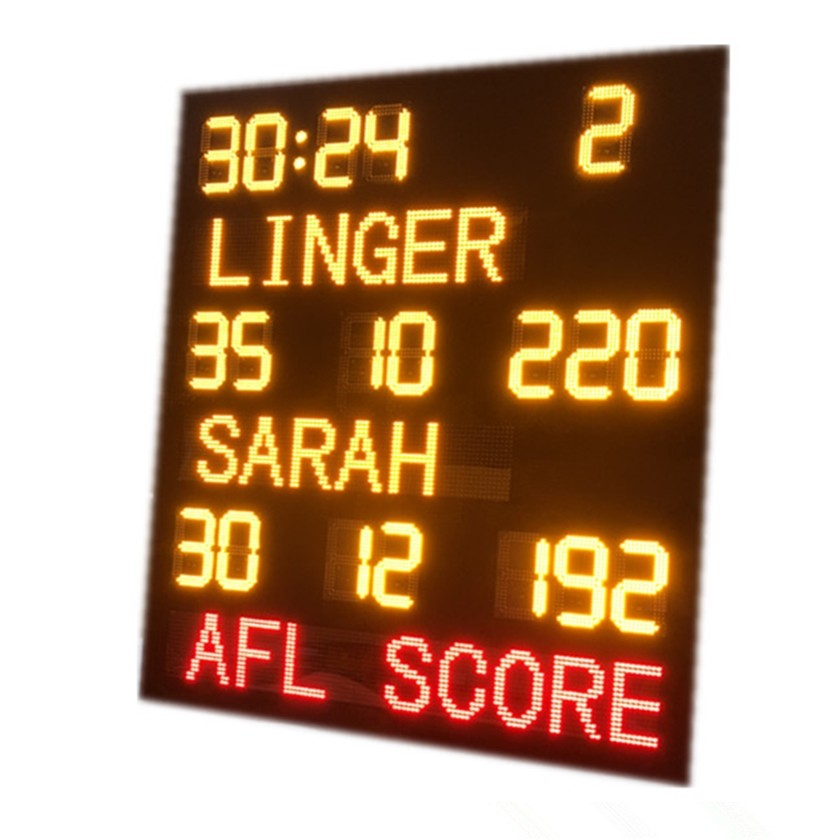

Customized Aussie Rules AFL Electronic Scoreboard 2100MM x 2300MM x 100MM



Descripition



Customized Aussie Rules AFL Scoreboard with New Layout and Single Line of Message Sign
Included the Time and Period . Time for Day Time with 24 Hours Model.
Cricket scoring is included as standard for use in the summer.
Installation is made simple by including lifting/fitting lugs fabricated into the framwork at the top of the capping.
Uses standard 10amp 240v power (actual power draw is much lower)
or can be supplied to be powered from a portable battery pack (FBC-NC-200, FBC-NC-300 models only) for locations without power close by.





PARAMETERS



Name Customized Aussie Rules AFL Scoreboard
Brand Linger
Type No. AFL-19D300R-VMSR
Board Size  2100mm * 2300mm * 100mm
Color Red & Yellow
Digit Height 12'' 300mm
LED Type Mist Led Diodes and It's no Dazzling
Digit Type  Completely PCB Circuit Board With DIP Led Diodes
Power Supply AC110V ~ 240V , 50-60Hz
Control Model IR Remote Control / Control Box / PC Software
Communication Type Wire / Wireless / RS232,RS485
Mounting /Installation Brackets for Hanging / Tripod / Holder / Moving Stand
Front Face Acrylic Panel + Inkjet Printing Film
Frame Color Black or Any Color (Option)
Acrylic Lens  Best Quality and Non- Reflective
Power Plug UK,Europe,China,Australia,USA,etc..
Whole Product Completely Silent Operation and Minimal Generated
Waterproof  IP65
View Distance 1m ~ 200m
Communication Distance 1m ~ 100m (Wire) / 1m ~ 250m (Wireless)
Brightness > 7500mcd / m2
Life Span 100000 Hours
Net Weight 30KGS/M2
Adv.Power < 160W
Warranty 18 Months






Available Option



More Option for Size



AFL-200-NT 200MM 0.9M * 2M
AFL-300-NT 300MM 1.3M * 3M
AFL-400-NT 400MM 1.5M * 4M
AFL-500-NT 500MM 2.0M * 5M



More Option for others



Electronic Team Name
Single Line of Moving Message
Game Time



Features





Scores - Automatically calculates Goals and Behinds to total score amounts for each team.



CRICKET FEATURES



Overs/Wickets - Tally in the middle column



Total Runs - Automatically tallied from batsmen runs.



Chasing Total - Shows previous innings total +1. Drops down at the start of each new innings.





FAQ



Q1. What is your payment ?

A : We accept T/T , Wester Union , Paypal.



Q2. When can you arrange the shipment after i have placed an order ?

A : Usually about 10days after receiving Payment.



Q3. Can you accept customized ?

YES.Welcome!



Q4. Is it OK to print my logo on the product?

A : Yes. Please inform us formally before our production and confirm.





Package & Delivery



Packaging Details :

  1. Air and Express Shipment Packaging : Carton
  2. Sea Shipment Packaging : Wood Case (Free)
  3. OEM Packaging : Customized . Warmly welcome to contact us to talk more detail.



Delivery Details :

  1. Order Quantity 1Unit ~ 20Units : 7days ~ 10days.
  2. Order Quantity 21Unit ~ 50Units : 10days ~ 15days.
  3. Order Quantity > 50Units : 15days ~ 20days.
  4. Sea Shipment need 25days to arrive.
  5. Air and Express Shipment need 3-5days to arrive.
