Outdoor Programmable Led Signs , Digital Scrolling Sign Asynchronous System
Product Details:
| Place of Origin: | Jiaxing ,Zhejiang ,China (Mainland) |
| Brand Name: | Linger |
| Certification: | CE / ROHS |
| Model Number: | LG-MS-PH4.75-R |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 1unit in 1 Carton / 10 units in 1 Wooden Case |
| Delivery Time: | 7 - 10 Days |
| Payment Terms: | T/T, Western Union,Paypal |
| Supply Ability: | 100Units/ Per Month |
|
Detail Information |
|||
| Pitch Size: | Pitch4.75mm | Sign Color: | Single Red Color |
|---|---|---|---|
| Brightness: | >2500cd / M² | Specification: | 546 |
| Control Mode: | To Be Synchronized With Computer | Warranty: | 2 Years |
| Highlight: | digital scrolling sign,led moving message display board |
||
Product Description

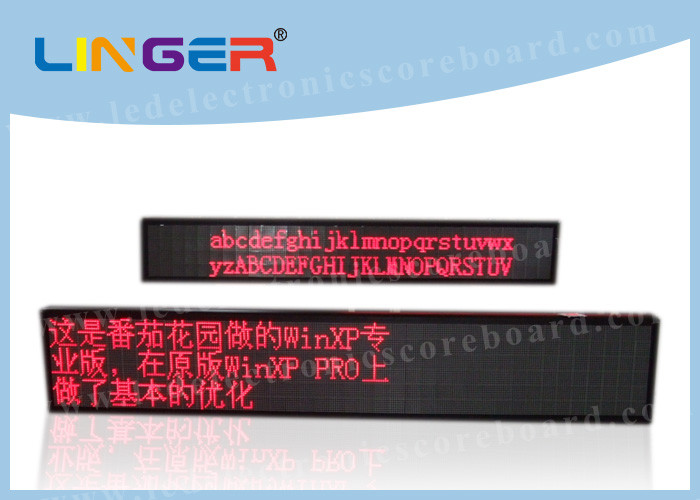

Asynchronous System LED Scrolling Message Sign for Front Maintain
1 .Led display can show various advertising information including characters and letters, symbol, etc.
2. You can set several different display areas to achieve different visual display effects.
3. Rich display types create various display effects.
4. Built-in clock can show count-down or count-up.
5. With automatic on/off software and intelligent brightness control, the product is energy and power saving.
6. Product supports USB drive character storing function and serial port 232 computer sending function.
7. Led display screen supports wireless, USB and RS232/485.
8. Led display screen supports synchronization with the display and of image and sound.
9. The software is easy to learn and we provide on-line free training service.
10. The hardware is convenient to assemble. The modular design is suitable for different product sizes and
satisfies various assembly demands.
| PARAMETER | |
| Each Pixel : | 1R |
| Module Pixel : | 32 * 64 |
| Pixel Pitch : | 4.75mm |
| Module Size : | 152mm x 304mm |
| Brightness : | > 2500cd / m2 |
| Horizontal Angle : | 120° |
| Vertical Angle : | 60° |
| View Distance : | 1m ~ 80m |
| Refresh frequency : | >600Hz |
| Refresh Speed : | 60 Frames |
| Chroma Levels : | 4096 |
| LED Life : | 100,000hours |
| Power Supply : | AC220V / 110V |
| Working Temperature : | - 20 ºC ~ 60 ºC |
| Working Humidity : | 5% - 90% RH |
| Display Colors : | More than 16,777,216 Colors |
| Driver : | 1/16 Scan |
| Waterproof : | IP54 / IP65 |
| Controller Mode : | To be synchronized with computer monitor |
| Display Capabilities : | characters , letters , symbol |
| Frame / Cabinet : | Iron Waterproof Cabinet in Black Color |
1. Linger devote to design the different sports of customized scoreboard, any kind of digit height and digit
color is made for different scoreboard.
2. Scoreboard controller type can be with cable or wireless type.
3. The brightness is enough for outside in day and night.
4. Scoreboard with Iron waterproof cabinet and prevent the impact.
5. The front face is acrylic glass board to protect digits and the acrylic glass board is UV Protection type.
1. Guarantee
Guarantee the products provided to the buyer are brand new, unbroken and unused
For supports of the contract equipment operation and maintenance, guarantee the technical data provided to the buyer are unbroken, clear and correct
2. Operating training
Provide detailed product manual, system operating and maintenance manual according to the contract list and will give the user the following training: systems operating, system and equipment maintenance
3. Repairing warranty
Repairing tenet: timely response, solve as soon as possible, ensure the using
4. Warranty period
Free for all maintenance service within the two years’ warranty, only need material cost+freight if beyond the warranty time and free for labor fee.
5. Warranty scope
Users can call or fax us directly if any problems you can't solve by yourself.
We will respond you within 48 hours and solve the problems for you.
Shall be responsible for the quality of equipment when it operating in a normal use and storage circumstances.
Free repairing and replacement parts for you if any problems due to quality of products.
Users shall inform and give us the detailed written report to state the detailed problems if any normal operating in the warranty period.
6. The following situations are not in the warranty scope
Unauthorized modification, problems due to incorrect use of equipment by the user, any fault or trauma caused by natural factors and war-torn.
Even after the project, still provide you a lifelong persistent maintenance to your system, constantly upgrade and perfect system function and software
Only need the components fee if any increased hardware equipment
For Indoor Scoreboard :
1) Bracket / Bracket with wheels
2) Hanging with Hooks and it is dangly
3) Hanging on the Wall and it is fixed on wall
4) Hanging on the pillar with anchor ear
For Outdoor Scoreboard:
1) Portal Frame
2) Hanging on the Wall and it must be fixed
3) Hanging on the pillar with anchor ear
4) Bracket / Bracket with wheels ( Only for small size )
5) Hanging into Wall and Fixed
Attention Matters:
Dissipate Heat and Drainage - Inform us the installation method in advance ,we will make
right method on scoreboard.
Maintenance - Easy to do maintance from front or back side .
Stable and stronger Method - Weatherproof
1.We are a reliable and professional supplier for led board in China for 11 years. We are specialized in
dealing a wide range of led product such as led scoreboard,led gas price sign,led message sign ,led
clock,led display and other led display. Since now we have so many fixed customers from all of the
world.
2.We accept the Customized Product or MOQ is one unit. At least 95% of led scoreboard is customized
type by our design on our website. We are specialized for scoreboard controller function design
especially Australia sport of scoreboard like Australia Football board and Cricket board.
3. We supply you the most led products with the competitive price, high quality, fast delivery and best
service. We are direct seller of led board and display, you can get the most competitive price from us.
Warmly welcome to contact us, and of course, you can visit our factory if you want.
