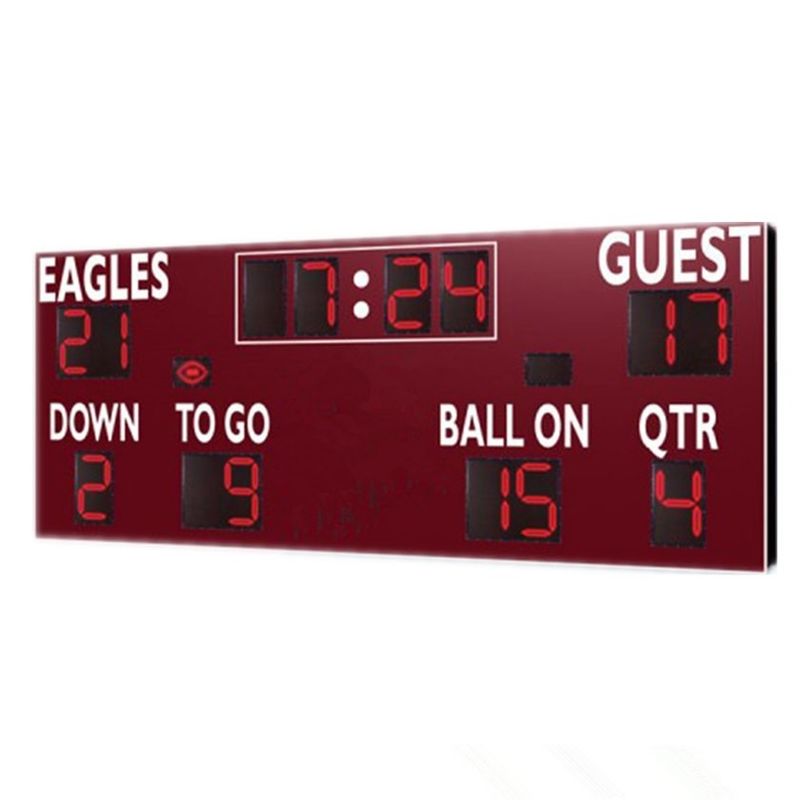

American Type Electronice Digital LED Football Scoreboard in Red Color

American Type Electronice Digital LED Football Scoreboard in Red Color

Product Details:

Place of Origin: Jiaxing, Zhejiang, China (Mainland)
Brand Name: Linger
Certification: CE ,RoHS
Model Number: LG-LFS14D300R

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Negotiation
Packaging Details: 1unit in one Carton / Wooden Case
Delivery Time: 7 - 10 Days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 100Units/ Per Month
Get Best Price Contact Now

Detail Information

Digit Color: Red Controller: PVC Controller Box - Wireless Type
Frame Material: Iron In Red Color Digit Height: 12'' 300mm
Scoreboard Size: 1000mm*2400mm*90mm Power Input: 110V ~ 220V
High Light:

portable digital scoreboard


electronic sports scoreboard


LED Football Scoreboard Wireless Type

Product Description

American Type Electronice Digital LED Football Scoreboard in Red Color

Item No. :  LG-LFS14D300R
Dight Height and Color : 12'' 300mm Height in Red Color
Scoreboard Dimension : 3.3ft x 7.9ft (1000mm*2400mm*90mm)
Controller Type :  PVC Controller Box / Windows Software (Wireless)
View Distance :  1m ~ 300m
Application :   Football Game
Work Temperature :  -20 ~ 60
Humidity :  0% - 95%
Printed Letters :  Sticker in White Color
Cabinet Color :  Red Color






Function : Used for Football Game and Display GAME TIME ,SCORES , DOWN ,TO GO ,QTR


Specification​ :


                      1) Use of the environment: Indoor or Outdoor

                      2) Brightness: High Level Brightness

​                      3) Height of Characte: 12'' 300mm

                      4) Display Led Color : Red (Any other kind is Option)

                      5) Frame Color : Red Color (Any other kind is Option)


​Overall Structure :

                      1) Display usage: 14 Pieces digits , 12 inch character in Red Color

                      2) Frame : Iron / Steel

                      3) Faceplate​ : Display window cover glass​ board and UV Protection

                      4) Drainage Outlet at the bottom of the Frame

                      5) Fans install inside of scoreboard


Technical Norms​ :


                       1) Power Supply : 110V ~ 240V

                       2) Operation Circumstance: -30℃ ~ 65℃ ,0% ~ 95% relative humidity


Operation Type :


                       1) PVC Buttons Controller Box / Windows Software

                       2) Hard - wire / Wireless Type

                       3) Operation Distance : Max 1000Meters.

                       4) Controller box works by 110V ~ 240V Power (Battery is an Option)



Life Time of Leds : 100000 Hours


Installation : Hanging / Mounting / Custoized Design


Delivery Time : 7days ~ 12days


Warranty : 2 Years


Package Dimension : 1070mm x 2470mm x 160mm (Carton)


Screen Dimension :  3.3 ' x  7.9 ' x 4''




Scoreboard used for  Football Sport. The function like below :

1> GAME TIME : Minute : Second 00:00 ~ 99:59 (It also can be Day time Clock)


2> HOME : 00 - 99 to change by Controller Box buttons .


3> GUEST : 00 - 99 to change by Controller Box buttons .


4> TO GO : 00 - 99 to change by Controller Box buttons .


5> DOWN : 0 - 9 to change by Controller Box buttons .


6> QTR : 0 - 9 to change by Controller Box buttons .


7> BALL ON : Display Number from 00 - 99


8> With Siren : It can sound when time to be Zero .


9> CLEAR button : Clear the all numbers to be Zero and Start new Game .


Sticker in white Color on the Scoreboard can be any Letters.


Function Option : Brightness Adjust / Clear Score


Any Special Function is Welcome !






1. Linger devote to design the different sports of customized scoreboard, any kind of digit height and digit

color is made for different scoreboard.

2. Scoreboard controller type can be with cable or wireless type.

3. The brightness is enough for outside in day and night.

4. Scoreboard with Iron waterproof cabinet and prevent the impact.

5. The front face is acrylic glass board to protect digits and the acrylic glass board is UV Protection type.





1. We manufactured Led Product over 10 Years.Rich experience with excellent staff, first-class production

    environment ,rigorous and efficient enterprise management system.
2. Customized Design Product is welcome.And MOQ can be 1 Unit.We will provide the competition price

     for Various Led Products.
3. The company has a variety of test equipment to control product quality like “Light Source Analysis

    System”, “High – Low Temp & Variation Chamber”, “Transportation Vibration Testing Machine”, “Splash

​    Water Test Equipment” .
4. Flexible Payment – Wire Transfer (T/T), Wester Union, Paypal .

5. Products all certificated, all our products have passed all test, certification can be provided if you need.




Cautions when using Scoreboard



1. Confirm the Scoreboard Input Power is 110V or 220V .110V input power are unable to use by 220V


power socket.


2. Controller box is not waterproof, please avoid to touch the water.


3. Don’t change any electronic part if there is no any professional technician.


4. Not for Children under 12Years.


5. Stored in a dry environment, avoid direct sunlight.


6. Avoid heavy objects hit the front galss board.
