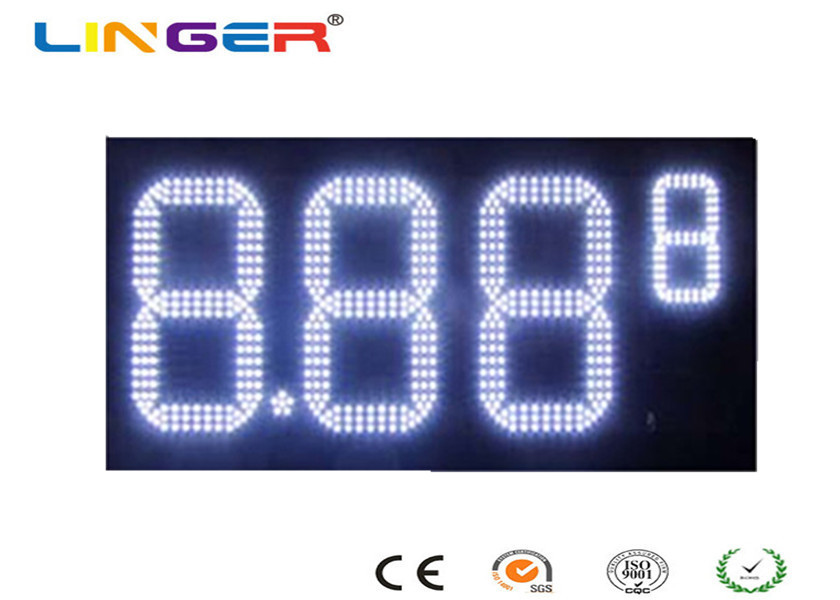

• Outdoor White Color Roadside Gas Station Led Price Sign With CE / RoHS Approved
Outdoor White Color Roadside Gas Station Led Price Sign With CE / RoHS Approved

Outdoor White Color Roadside Gas Station Led Price Sign With CE / RoHS Approved

Product Details:

Place of Origin: Zhejiang,China
Brand Name: Linger
Certification: CE/ROHS/FCC/ETL/TUV
Model Number: LG-GPS-W

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Negotiation
Packaging Details: Plywood and Cartons
Delivery Time: 15 ~ 20 Working Days after received Payment
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 5000pcs Per Month
Get Best Price Contact Now

Detail Information

Digit Height: 16'' 400mm Height Led Color: White Option: Green/Yellow/ Red
Digits Quality: 8*3PCS + Small 9 Price Format: 8.88 9
Working Temperature: -22 ℉ ~122 ℉(-20℃ ~ 50℃) Led Diodes: 98pcs / Each One Dip Digit
Control: IR Remote / Wireless Controller / PC Software Maintaince: Front And Back Side
High Light:

led fuel price signs

,

electronic gas price signs

Product Description

Outdoor White Color Roadside Gas Station Led Price Sign with CE / RoHS Approved





ADVANTAGE





1. Digit is Completely PCB Circuit Board with DIP Led Diodes .

(Not the Cheap Digital Tube)





2. With the same 12inch Digits, we have 3lines of Led Diodes .

(The other Suppliers only make 2lines of Led Diodes)



3. Less Cable for Connection .It is more convenient to change the digits .

( The Other Suppliers make the complicated Connection.)



4. Advantage: Insulation Treatment .

5. Advantage: Brightness > 7000mcd / with Auoto Adjustment also.

6. Advantage: Front Side Materials - BEST Acrylic Board with UV Protection.





7. Connection For Several Pieces : Only one main Power Cable come From the Sign .

There is no any long cables . No extra Control box .



























SPECIFICATION



Digit Height 16'' 400mm +10'' 254mm Led Color  Cold White Color
Price Format 8.88 9 Digit Type  PCB Cricuit Board Digit
Led Diodes for each digit  254pcs of Led Diodes Sign Dimension 510mm*1170mm*75mm
Control Communication Wireless RS232 Control Type IR Remote/ Buttons Box
Control Operation Distance 1m~ 100m(IR) /800m (W)  Brightness   > 7000mcd / Auto
Work Temperature  -20℃ ~ 50℃ Humidity 0% - 95% RH
Input Volatge 110V ~ 240V AC Power < 200W
Life Span > 100000 Hours Installation Customized
Maintaince Front/Back Side Cabinet/ Frame IP65 Iron Steel in Black
Front Side Materials UV  Acrylic Board Display Function Number for Gas Price








                                                       Outdoor White Color Roadside Gas Station Led Price Sign With CE / RoHS Approved 0



3 TYPES For ORDER





    01 The Whote Set  (Light Luxury Type)



    This type with IP65 Iron Waterproof Cabinet and Installation Brackets.

     It is a completely Sign which can be used for Outdoor directly .

     There is only one Cable come from the Cabinet . Cable length is about 3M .

     If you order several pieces ,there is no any long cable need to connect for each Cabinet.

     There is no Extra Black Control Box ,we make power supply and control card INSIDE of Cabinet.





      02 Semi - Finished   (Very Cost - Effective Economy)



      This type without the IP65 Iron Waterproof Cabinet and Installation Brackets.

      Digits finished to install on the Black Board ,with a UV Protection Acrylic Board for Front Face.

      Some of Gas Station have done their own Frame or Cabinet . So the Semi - finished type is suited

      for this kind of gas station, they can be installed into their own cabinet directly and convenient.





    03 Components (Advantage for this type is to save shipping cost )



    Only order Digits / Power Supply / Control Card / Control Remote / Several Cables / Power Cable

    Need customer design and install all parts into their Own Cabinet .

    The weight is small and can save much more shipping cost .







Purchase Process



1. Inquiry-Professional quotation by email or telephone.
2. Confirm the price, lead time, artwork, payment term etc.
3. Send the Performa Invoice.
4. Customer makes the payment and sends us Bank receipt.

5. Initial Production Stage-Inform the clients that we have got the payment, And will make the samples according to your request, send you photos or Samples to get your approval. After approval, we inform that we will arrange the production & inform the estimated time.
6. Middle Production-send photos to show the production line which you can see your products in . Confirm the estimated delivery time again.
7. End Production-Mass production products photos and samples will send to you for approval. You can also arrange the third party inspection if you need.

8. Finish the balance payment if the order has .Book the flight or vessel and ship the goods. Inform the tracking number or send the Documents for Customer to do Customs Clearance.

9. Order can be say “finish” when you receive the goods and satisfy with them.
10. Feedback to us about Quality, Service, Market Feedback & Suggestion. And we can do better.



Trade Terms



1. Do you accept OEM & ODM order?
Yes! We can produce products according to customers’ design and samples.


2. What is MOQ?
MOQ can be 1unit.



3. How about the payment terms?
T/T ,Western Union,Paypal in advance .


4. Can I get samples from you?
Yes! Sample could be supplied. But it is not free.


5. What is the warranty?
It is 2 years.


6. What about the price level?
As a professional manufacturer who have been Specializing in the production of led scoreboard,led gas price sign,led message sign,led disply for more than 15years, we are sure that our prices have a great competitive advantage over the products at the same level.
