|Place of Origin:||Jiaxing ,Zhejiang ,China (Mainland)|
|Certification:||CE / ROHS|
|Minimum Order Quantity:||1 Unit|
|Packaging Details:||1unit in 1 Carton / 10 units in 1 Wooden Case|
|Delivery Time:||7 - 10 Days|
|Payment Terms:||T/T, Western Union,Paypal|
|Supply Ability:||100Units/ Per Month|

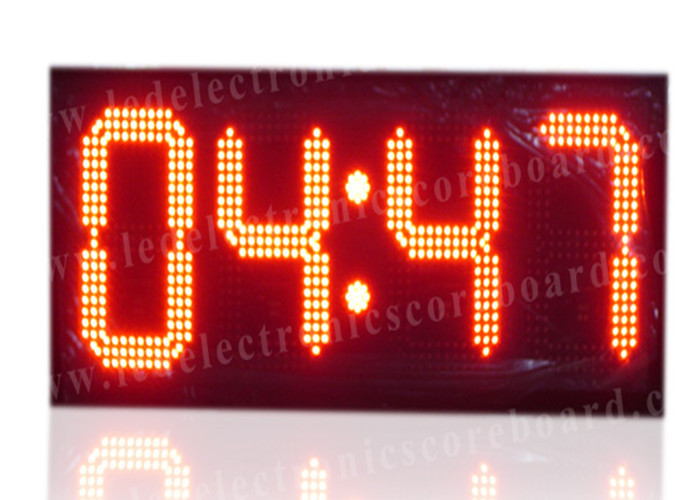

High Brightness Red Color 12inch Digit LED Countdown Timer with Hanging Brackets
|Format :||88 : 88||Color :||Red|
|Display Size :||370mm x 1010mm||Thickness :||100mm|
|Digit Size :||12'' 300MM||Housing :||Iron Cabinet|
|Communication1 :||IR Remote||Communication Distance :||IR = 10M|
|Communication2 :||Wire||Communication Distance :||RS232 = 50M|
|Communication3 :||Wireless||Communication Distance :||RF433 =1000M|
|Output Voltage :||5V||Volatge Input :||110V ~ 240V AC|
|Brightness :||5000cd / M2||Working Temp :||-30℃ ~ +65℃|
|Viewing Angle :||> 100°||Working Humidity :||5% - 90% RH|
|Life Span :||100,000 Hours||Waterproof :||IP65|
1) Use of the environment: Outdoor and Indoor
2) Brightness: High Level Brightness
3) Height of Number Option : 6'' / 8'' / 10'' / 12'' / 16'' / 20'' / 24'' / 30'' ect.
4) Number Color Option : Red / Green / Amber / Blue / White
5) Frame Color : Black Color (Any other kind is Option)
Overall Structure :
1) Display Sign Include : Numbers ,Controller , Cabinet / Frame ,Power Supply
2) Frame : Iron / Steel
3) Faceplate : Display window cover glass board and UV Protection
4) Drainage Outlet at the bottom of the Frame
5) Fans install inside of scoreboard
Technical Norms :
1) Power Supply : 110V ~ 240V
2) Operation Circumstance: -30℃ ~ 65℃ ,5% ~ 90% relative humidity
Operation Type :
1) Controller Type : IR Remote / PVC Buttons Controller Box / Windows Software
2) Communication Type : IR / Hard - wire / Wireless Type
3) Operation Distance : 10m ~ 1200m.
4) Operation Power : Remote with Battery / Controller Box with 110v ~ 240v Power
Life Time of Leds : 100000 Hours
Installation : Hanging / Mounting / Tripod / With wheels / Custoized Design
Delivery Time : 7days ~ 12days
Warranty : 2 Years
Package Dimension : 440mm x 1080mm x 170mm
|Model||Timer Size||Package Dimension|
|8'' 200mm||300mm x 700mm x 100mm||370mm x 770mm x 170mm|
|10'' 254mm||350mm x 800mm x 100mm||420mm x 870mm x 170mm|
|12'' 300mm||370mm x 1010mm x 100mm||440mm x 1080mm x 170mm|
|16'' 400mm||610mm x 1320mm x 100mm||680mm x 1390mm x 170mm|
|20'' 500mm||700mm x 1500mm x 100mm||770mm x 1570mm x 170mm|
|24'' 600mm||770mm x 1750mm x 100mm||840mm x 1820mm x 170mm|
|30'' 750mm||920mm x 3140mm x 100mm||990mm x 3210mm x 170mm|
1.Display : Hours : Minutes / Minutes : Seconds (Support 12/24 Hour)
2.Count up : Count from zero to 99 hours 59 minutes / 59 minutes 59 seconds
3.Countdown : Count from 99 hours 59 minutes to zero / 99 minutes 59 seconds to zero
4.Stopwatch : seconds and 1/100 of seconds format,zero up to 59:99
5.Interval timer: interval repeating countdown/ count up timer, max 99 rounds
* Install GPS inside as Clock ,then it can search time and Display AUTO.
* Timer can work by Battery .
* Colon between the digits can be dark and the timer can be used to display Sports / Game Scores.
* Extra Function to display Temperature.
1. Do you accept OEM & ODM order?
Yes! We can produce products according to customers’ design and samples.
2. What is MOQ?
MOQ can be 1unit.
3. How about the payment terms?
T/T ,Western Union,Paypal in advance .
4. Can I get samples from you?
Yes! Sample could be supplied. But it is not free.
5. What is the warranty?
It is 2 years.
6. What about the price level?
As a professional manufacturer who have been Specializing in the production of led scoreboard,led gas
price sign,led message sign,led disply for more than 15years, we are sure that our prices have a great
competitive advantage over the products at the same level.
We always looking the trend of market and technology, develop the new product with innovation and
special feature. Strong OEM ability and strictest QC system can make sure the mass production quality
and delivery time.
We are a professional Led Scoreboard manufacturer in China. With many years of experience since
2002 in producing Led Scoreboard products. Our company has complete quality management systems
and professional production equipment. We can design more than 100 styles by ourselves per year and
also we can arrange production according to customers' ideas and samples.
1.Discuss the decided visiting time
2.Send our Invitation Letter to you
3.The airport closed to our company is Shanghai Pudong / Hongqiao International Airport
Hangzhou Xiaoshan Airport
4.Inform us the schedule ,flight date and time .
5.We can help you to book the hotel in advance if you need
6.We send people to the airport pick up and take you to our company if you need.
7.The high - speed rail and Car is the best way to come to our city by yourself.
Welcome you to Visit China and our Company !
|Tube Chip Color:||Red||Digit Height:||12'' 300mm|
|Format:||88 : 88||Sign Size Mm:||370*1010*100|
|Controller:||IR Remote / PVC Buttons Box / Windows Software||Display Function:||Time|
|Cabinet:||Aluminium Frame / Iron Cabinet||Usage:||Outdoor|
