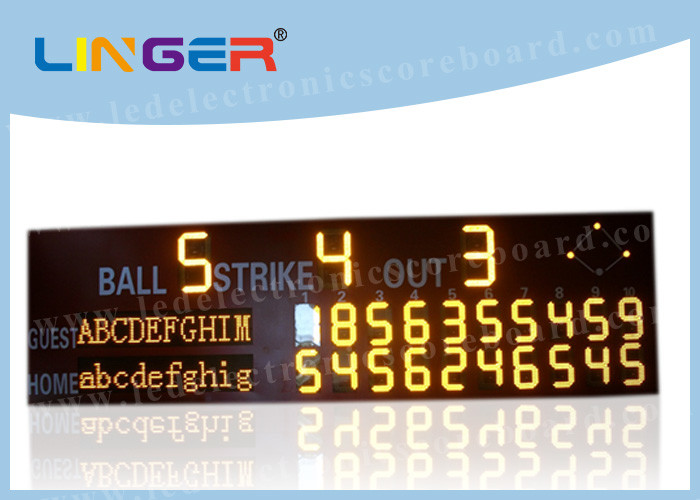

High Brightness LED Baseball Scoreboard For University CE / RoHS Approved

High Brightness LED Baseball Scoreboard For University CE / RoHS Approved

Product Details:

Place of Origin: Jiaxing, Zhejiang, China (Mainland)
Brand Name: Linger
Certification: CE ,RoHS
Model Number: LG-LBBS-43D300Y400Y

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Negotiation
Packaging Details: 1unit in one Carton / Wooden Case
Delivery Time: 7 - 10 Days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 100Units/ Per Month
Get Best Price Contact Now

Detail Information

Digit Color: Amber Color Controller: PVC Controller Box - Wireless Type
Frame Material: Iron In Red Color Digit Height: 12'' 300mm And 16'' 400mm
Scoreboard Size: 1280mm*9000mm*100mm UV Protection: Front Face
Input Power: 110V ~ 220V Waterproof: Outdoor Type
High Light:

High Brightness Electronic Baseball Scoreboard

,

University LED Baseball Scoreboard

,

High Brightness LED Baseball Scoreboard

Product Description


 High Brightness and Best Quality LED Baseball Scoreboard for University


PRODUCT INFORMATION
Item No. :  LG-LBBS-43D300Y400Y
Dight Height and Color : 12'' 300mm 16'' 400mm Height in Single Amber Color
Size : 1280mm*9000mm*100mm
Team Name :  Led Type and size for 256mm x 1280mm /Team name
10 Letters for each Team name
Controller Type :  PVC Buttons Type Controller Box / Windows Software (Wireless)
View Distance :  1m ~ 500m
Application :  Baseball Game
Frame Color :  Blue / others
Printed Letters Sticker in White Color
Brightness :  > 5000mcd / sqm
Waterproof :  Outdoor Type





 Specification for LG-LBBS-43D300Y400Y



Function : Display Score and Team name





Specification​ :



                      1) Use of the environment: Outdoor

                      2) Brightness: High Level Brightness

                     ​ 3) Height of Characte: 12'' 300mm and 16'' 400mm

                      4) Display Color : Amber Color (Any other kind is Option)

                      5) Frame Color :  Red Color (Any other kind is Option)

                      6) Height of the Team Name Letter : 250mm

                      7) Team Name Size :  256mm x 1280mm x 2





​Overall Structure :



 ​                      1) Display usage:  38 pieces digits ,12 inch height character in Amber Color

                                                     5   pieces digits ,16 inch height character in Amber Color

                       2) Frame : Iron / Steel

                       3) Faceplate​ : Display window cover glass​ board and UV Protection

                       4) Drainage Outlet at the bottom of the Frame

                       5) Fans install inside of scoreboard

                       6) At the top of the Scoreboard with a Moving Message Sign





Technical Norms​ :



                      1) Power Supply : 110V ~ 240V

                      2) Operation Circumstance: -30℃ ~ 65℃ ; 0% ~ 95% relative humidity





Operation Type :



                      1) PVC Buttons Controller Box / Windows Software

                      2) Hard - wire / Wireless Type

                      3) Operation Distance : Max 1000Meters.

                      4) Controller box works by 110V ~ 240V Power (Battery is an Option)

                      5) Team Name Letter use the same Controller Box to enter .





Life Time of Leds : 100000 Hours



Installation : Hanging / Mounting / Custoized Design



Delivery Time : 7days ~ 12days



Warranty : 2 Years



Package Dimension : 1400mm x 9060mm x 200mm ( wooden case )



Screen Dimension :  3.6 ' x 30 ' x 4''





Description for Function





GUEST INNINGS : 10Digits to display Score from 0 - 9



​HOME INNINGS: 10Digits to display Score from 0 - 9



GUEST RUNS : 2Digits to display Score from 00 - 99



HOME RUNS : 2Digits to display Score from 00 - 99



GUEST HITS : 2Digits to display Score from 00 - 99



HOME HITS : 2Digits to display Score from 00 - 99



GUEST ERRORS : 1Digit to display Score from 0 - 9



HOME ERRORS : 1Digit to display Score from 0 - 9


BALL : 1Digit to display number from 0 - 9



STICKER : 1Digit to display number from 0 - 9



​OUT : 1Red Digit to display number from 0 - 9



AT BAT : 2Digits to display Score from 00 - 99



TIME : HH : MM -4 Digits to display



Function Option : Brightness Adjust / Clear Score



Any Special Function is Welcome !
