710mmX2075mmX70mm Green Color AFL Electronic Scoreboard UV Protection
Product Details:
| Place of Origin: | Jiaxing ,Zhejiang ,China (Mainland) |
| Brand Name: | LG-Linger |
| Certification: | CE / ROHS |
| Model Number: | LG-AFL18D254200GY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 1unit in 1 Carton / Wooden Case |
| Delivery Time: | 7 - 10 Days |
| Payment Terms: | T/T, Western Union,Paypal |
| Supply Ability: | 100Units/ Per Month |
|
Detail Information |
|||
| Digit Size: | 10'' 254mm | LED Color: | Green |
|---|---|---|---|
| Frame Material: | Iron / Steel / Aluminum | Opreation Type: | PVC Buttons Box - Wireless Type |
| Scoreboard Dimension: | 710mm H * 2075mm L * 70mm T | UV Protection: | Front Glass Board |
| Usage: | Indoor And Outdoor | Input Voltage: | 110V ~ 250V |
| High Light: | UV Protection AFL Electronic Scoreboard,Green Color AFL Electronic Scoreboard,Wireless Type AFL Electronic Scoreboard |
||
Product Description

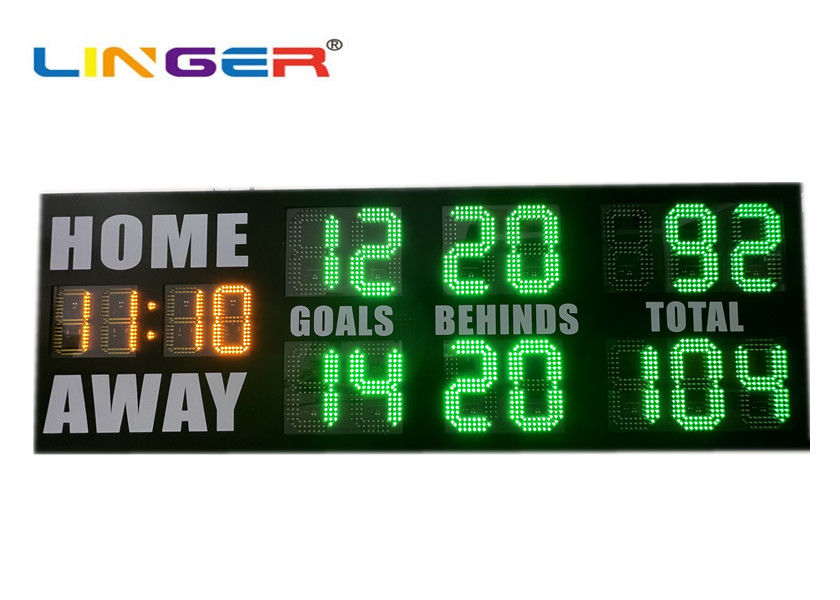

710mm x 2075mm x 70mm Green Color AFL Eletronic Scoreboard
| PRODUCT INFORMATION | |
| Model No. : | LG-AFL18D254200GY |
| Dight Height and Color : | 10'' 254mm Height in Green and Yellow Color |
| Display Dimension : | 710mm H x 2075mm L x 70mm T |
| Operation Type : | PVC Buttons Type Controller Box (AA Battery) |
| View Distance : | 1m ~ 150m |
| Application : | AFL (Football Sport and Cricket Sport ) |
| Frame Color : | Black / other Colors |
| Printed Letters | Sticker in White Color for Any letters |
| Weight : | 70kgs |
| Waterproof : | Outdoor Type |
Function : Football Mode and Cricket Mode Information
Specification :
1) Use of the environment: Indoor or Outdoor
2) Brightness: High Level Brightness
3) Height of Characte: 12'' 300mm
4) Display Led Color : Green (Any other kind is Option)
5) Frame Color : Black Color (Any other kind is Option)
6) Team Name : Pitch12mm Led Module in Yellow Color
Overall Structure :
1) Display usage:
18 Pieces digits , 12 inch character in Green Color
60 Pieces led modules ,Pitch12mm in Yellow Color
2) Frame : Iron / Steel
3) Faceplate : Display window cover glass board and UV Protection
4) Drainage Outlet at the bottom of the Frame
5) Fans install inside of scoreboard
Technical Norms :
1) Power Supply : 110V ~ 240V
2) Operation Circumstance: -30℃ ~ 65℃ ,0% ~ 95% relative humidity
Operation Type :
1) PVC Buttons Controller Box / Windows Software
2) Hard - wire / Wireless Type
3) Operation Distance : Max 1000Meters.
4) Controller box works by 110V ~ 240V Power (Battery is an Option)
Life Time of Leds : 100000 Hours
Installation : Hanging / Mounting / Custoized Design
Delivery Time : 7days ~ 12days
Warranty : 2 Years
Package Dimension : 1270mm x 3670mm x 160mm ( Wooden Case ) / 300kgs
Screen Dimension : 3.9 ' x 11.8 ' x 4''
AFL Scoreboard with 2 Modes : Football (Aussie) Mode and Cricket Mode
TIME : Minutes / Seconds for Football Mode , Hours : Minutes for Cricket Mode - 4 Digits to display
Footbal Mode Mode :
GOAL - 2 Digits Display score number 00 - 99 ( GOAL + 1 = TOTAL + 6 )
BEHINDS - 2 Digits Display score number 00 - 99 ( BEHINDS + 1 = TOTAL + 1)
TOTAL - 3 Digits display score number 000 - 999
Cricket Mode Mode :
BATSMEN RUNS - 3 Digits display number 000 - 999
WICKETS - 2 Digits display number 00 - 99
OVERS - 2 Digits display number 00 - 99
BATEMAN TOTAL - 3 Digits display number 000 - 999
CHASING - 3 Digits display number 000 - 999
Team Name : Sticker in White Color (Customized)
Siren : Include . When time is reach to 00 :00 , it will sound for 5 ''
Led Brightness : Option
SCOREBOARD FUNCTION IS CUSTOMIZED ,ANY FUNCTION IS WELCOME !
