Digital Board Seven Segment Digit With 24 Inch Height For Outdoor Clock
Product Details:
| Place of Origin: | Zhejiang,China |
| Brand Name: | Linger |
| Certification: | CE/ROHS/FCC/ETL/TUV |
| Model Number: | D600 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Film+1-3 cm Foam + Paper Cardboard / Wooden Case |
| Delivery Time: | 2-7 Work Days |
| Payment Terms: | T/T, Paypal,Alipay ,Wechat |
| Supply Ability: | 1000000pcs Per Month |
|
Detail Information |
|||
| PCB Board: | 1.6mm Thickness | PCB Model: | FR-4 T130 PCB Board |
|---|---|---|---|
| Led Diode: | 5mm Diameter | Diode Chip: | Cree |
| Chip Color: | Single Green | Dight Size: | 350mm W * 600mm H * 7mm T |
| Brightness: | > 1000cd / Per Led | View Angle: | 135° |
| High Light: | seven segment digit,scoreboard parts |
||
Product Description

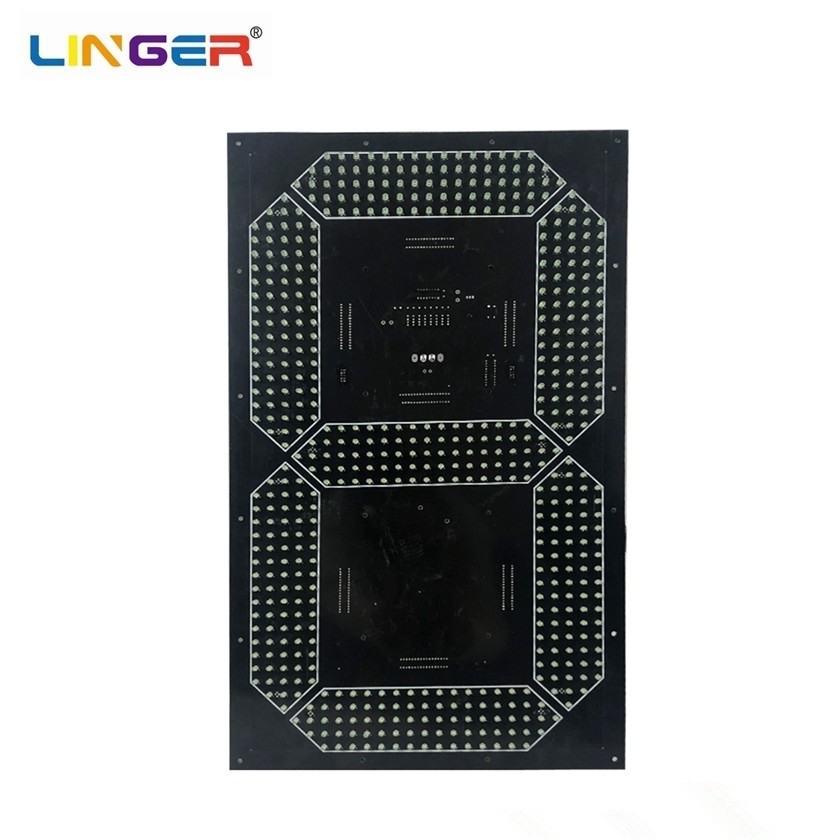

7 Segments Large Digital Board With 24Inch Height for Outdoor Clock
DIGIT DESCRIPTION
The 7 Segment Digits made by FR-4 T130 Kind of Circuit PCB board and Super Brightness Led Diodes with Cree or Epistar Chip .
Led Didoes with 135° View Angle is Avaliable for different side of Viewing. It is made by Cree and Epistar Chip to be sure the life is more than 100000 Hours.
Thickness of FR-4 T130 PCB board is 1.6mm . At the back of Digit Cover thick Protect Lacker to keep dry to Prevent Rust.
Back of Digit made the Simple Horn Socket Can Lock the Signal Cable Head to Prevent it from Falling off During Shock.
The Digit Board has Large Value Capacitor is avaliable for Rectification Filtering .
Here also Welded 2 chips Can Improve the Signal and Make the Signal Immune to External Interference. With Separate Control Function.
This board designed with SMD Resistor and Transistor . SMD Resistor Protect the Led Current to Extend the Lamp Life. The Transistor will Protect the Led Current to Extend the Lamp Life.
We Give the Digital Board a full Range of Technical Standards to Ensure that Customers will not have any problems in the future, so that the Digit Can Work with The Perfect Effect.
PARAMETER
| Dight Model NO. | D600 |
| Digit Height | 24'' 600mm Height |
| Digit Board Size | 350mm W * 600mm H * 7mm T |
| Led Quantity | 581 PCS |
| Led Line | 6 |
| Digit Color | Single Green |
| Digit Circuit Board | FR-4 T130 PCB Board |
| PCB Board Thickness | 1.6mm |
| Diode Type | Mist Led Diodes and Without Dazzling |
| Diode Chip | Cree / EpiStar / AXT |
| Led Diode Diameter | φ5mm |
| Brightness | 1000 ~ 1500 / Per Led |
| Max Viewing Angle | 135° |
| Minimum Viewing Angle | 45° |
| Communication Connector | 10Pin Flat Grey Cable |
| Wave Length | 620nm ~ 625nm |
| Led Forward Voltage | 2.0V - 2.4V |
| Led Peak Forward Current | 100mA |
| Operating Voltage | DC12V |
| Operating Current | Max 2.38A |
| Power Consumption | Max 30W |
| Luninous Intenisty | 6500cd/m2 |
| Led Operating Temperature (℃) | -20 ~ 65 |
| Led Storage Temperature (℃) | -40 ~ 100 |
| Led Operating Humidity | 5% ~ 95% |
| Digit Weight | 700g |
| Led Life | 100000 Hours |
| Installation | 10 Screws |
COLOR OPTION
PACKAGE & DELIVERY
Packaging Details :
- Air and Express Shipment Packaging : Carton
- Sea Shipment Packaging : Wood Case (Free)
- OEM Packaging : Customized . Warmly welcome to contact us to talk more detail.
Delivery Details :
- Order Quantity 1Unit ~ 20Units : 7days ~ 10days.
- Order Quantity 21Unit ~ 50Units : 10days ~ 15days.
- Order Quantity > 50Units : 15days ~ 20days.
- Sea Shipment need 25days to arrive.
- Air and Express Shipment need 3-5days to arrive.
SHIPMENT
1.Where do you load the goods?
We offer shipment by sea or by air as requested by the buyer.
The sea port we are used : Shanghai Sea port
The airport we are used : Shanghai Airport
2.What is the lead time ?
Usually, the lead time is 7-10 days.
3.Which logistics company do you cooperate with?
Our company cooperates with COSCO, APL, CMA, CSAV, K-LINE, MSC and etc. For courier, it’s up to buyer’s option. We will give suggestion according to the time table of the steamers and their services.
