• IP65 Level Digital Cricket Scoreboard , Multi Sport Scoreboard 7 Segment Display
IP65 Level Digital Cricket Scoreboard , Multi Sport Scoreboard 7 Segment Display

IP65 Level Digital Cricket Scoreboard , Multi Sport Scoreboard 7 Segment Display

Product Details:

Place of Origin: Jiaxing, Zhejiang, China (Mainland)
Brand Name: Linger
Certification: CE ,RoHS
Model Number: LG-LCS-19D300Y-V1

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Negotiation
Packaging Details: 1unit in one Carton / Wooden Case
Delivery Time: 7 - 10 Days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 100Units/ Per Month
Get Best Price Contact Now

Detail Information

Digit Color: Amber Color Controller: PVC Controller Box - Wireless Type
Frame Material: Iron In Black Color Digit Height: 12 Inch 300mm 6 Inch 150mm
Scoreboard Size: 15000mm*2100mm*100mm UV Protection: Front Face
Input Power: 110V ~ 240V Usage: Outdoor Type
High Light:

electronic cricket scoreboards

,

digital cricket scoreboard

,

7 Segment Display Digital Cricket Scoreboard

Product Description


IP65 Waterproof Level Electronic Score board for Cricket Sport and outdoor use





PRODUCT INFORMATION
Model No. :  LG-LCS-19D300Y-V1
Dight Height and Color : 12'' 300mm and 6'' 150mm in Single Amber Color
Display Dimension  : Large : 5ft x 6.9ft ( 1500mm*2100mm*100mm )
Mini : 1.6ft x 3.3ft (500mm * 1000mm * 100mm)
Operation Type :  PVC Buttons Type Controller Box / Windows Software (Wireless)
View Distance :  1m ~ 300m
Application :  Cricket Game
Frame Color :  Black / others
Printed Letters Sticker in White Color
Brightness :  > 5000mcd / sqm
Waterproof :  Outdoor Type
Frame Material : Iron / Steel
Viewing Angle : >110°





Feature



Function : Display Score



Specification​ :

                     1) Use of the environment: Outdoor

                     2) Brightness: High Level Brightness

​                     3) Height of Characte:  12'' 300mm for Main Scoreboard / 6'' 150mm for Mini Scoreboard

                     4) Display Color :  Amber Color (Any other kind is Option)

                     5) Frame Color : Black Color (Any other kind is Option)



​Overall Structure :

​                     1) Display usage: Totally 19 pieces digits ,12 inch height character

                                                  Totally 15 pieces digits ,6 inch height character

                     2) Frame : Iron / Steel

                     3) Faceplate​ : Display window cover glass​ board and UV Protection

                     4) Drainage Outlet at the bottom of the Frame

                     5) Fans install inside of scoreboard



Technical Norms​ :



                     1) Power Supply : 110V ~ 240V

                     2) Operation Circumstance:  -30℃ ~ 65℃ ; 0% ~ 95% relative humidity



Operation Type :



                      1) PVC Buttons Controller Box / Windows Software

                      2) Hard - wire / Wireless Type

                      3) Operation Distance : Max 1000Meters.

                      4) Controller box works by 110V ~ 240V Power (Battery is an Option)

                      5) Main Scoreboard with Mini Scoreboard work for same Controller



Life Time of Leds : 100000 Hours



Installation : Hanging / Mounting / Custoized Design



Delivery Time :  7days ~ 12days



Warranty : 2 Years



Package Dimension : 1570mm x  2170mm x 150mm  (Carton)

                                   570mm x 1070mm x 100mm (Carton)





Screen Dimension :  5'  x  6.9'  x  4''   / Mini :  1.6' * 3.3' * 4''

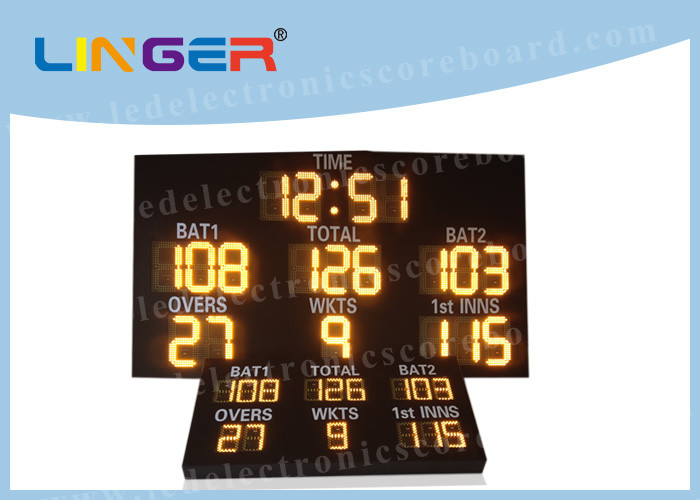

 Function



Large Scoreboard and Mini Scoreboard work with the same controller .And Mini scoreboard information



will display at the same time with Large Scoreboard together . So there is no any buttons on Controller for



Mini Scoreboard. It is copy scoreboard to display directly .



TIME : 4Digits to display HH : MM for  Day time Clock /  12Hours Mode or 24Hours Mode



TOTAL  :  3digits to display number from 000 - 999 / Buttons for TOTAL + 1 + 5 - 1



BAT1 : 3digits to display number from 000 - 999 / Buttons for BAT 1   = + 1  - 1



BAT2 : 3digits to display number from 000 - 999 / Buttons for BAT 2  = + 1  - 1



OVERS :  2digits to display number from 00 - 99 / Buttons for OVERS + 1 - 1



WKTS :  1digit to display number from 0 - 9 / Buttons for WKTS  + 1  - 1



1st INNS :  3digits to display number from 000 - 999 / Buttons for 1st INNS  + 1 + 5 - 1



Sticker in white Color on the Scoreboard can be any Letters.



Function Option : Brightness Adjust / Clear Score



Any Special Function is Welcome !







FAQ


Are you a manufacture?

A : Yes, we are a manufacture with rich experience.

Can I visit your factory ?

A : Welcome ! The nearest air port is Shanghai Pudong International Airport.

How does your factory do Quality Control?

A : Quality is 1st priority. We always attach great importance to quality controlling from

raw material suppliers. We have professional QC team to inspect the products.

Can you add my own LOGO on the product?

A : Yes, customized logo are welcome. OEM and ODM is OK for us.

Can we use our own shipping agent?

A : Yes, you can. We had cooperated with many forwarders. If you need ,we can

recommend some forwarders to you and you can compare the price and services.





Packing and Logistics

1. Where do you load the goods?
We offer shipment by sea or by air as requested by the buyer.

The sea port we are used : Shanghai Sea port

The airport we are used : Shanghai Airport
2. What is the lead time ?
Usually, the lead time is 7-10 days.

3. Which logistics company do you cooperate with?

Our company cooperates with COSCO, APL, CMA, CSAV, K-LINE, MSC and etc. For courier, it’s up to

buyer’s option. We will give suggestion according to the time table of the steamers and their services.



Packaging & Delivery



Packaging Details :



1) Air and Express Shipment Packaging : Carton



2) Sea Shipment Packaging : Wood Case (Free)



3) OEM Packaging : Customized . Warmly welcome to contact us to talk more detail.



Delivery Details :



1> Order Quantity 1Unit ~ 20Units : 7days ~ 10days.



2> Order Quantity 21Unit ~ 50Units : 10days ~ 15days.



3> Order Quantity > 50Units : 15days ~ 20days.



4> Sea Shipment need 25days to arrive.



5> Air and Express Shipment need 3-5days to arrive.
